Polaroid P8600 Retransfer Card Printer (600 DPI)

Polaroid P8600 double-sided retransfer card printer offers edge-to-edge, high-resolution 600 DPI print capability for clear, sharp imagery, and micro printing. The superior print quality provides the perfect solution for businesses across a wide range of sectors that require high definition printing using blank white card stock.

Applications

  • Corporate ID Cards
  • Student ID Cards
  • Gift Cards
  • Loyalty Cards
  • Membership Cards
  • Transportation Cards

With optional contact/contactless smart encoding and magnetic stripe encoding technologies, the Polaroid P8600 card printer is the perfect option for businesses requiring greater security. The printer has a 100 card input/output hopper with the option to upgrade to 250 for businesses needing increased quantity throughput.

  • Printing Capability: Dual-sided, full bleed
  • Print Technology: Retransfer
  • Resolution: 600dpi
  • Printable Area: Edge to edge printing over the card surface
  • Print Speed (YMCK): 27.5 sec / single side | 55 sec / dual side (YMCK/K)
  • Card Thickness: 0.25mm ~ 1.00mm
  • Card Size: 54.0mm x 85.6mm

Versatility

  • Encoding functionality (magnetic, contact IC, RFID)
  • Laminator connection (single/dual side)
  • Various media substrates and security features available

High-Quality

  • The 600DPI print resolution allows printing small characters (microtext) as a security feature.

Secure

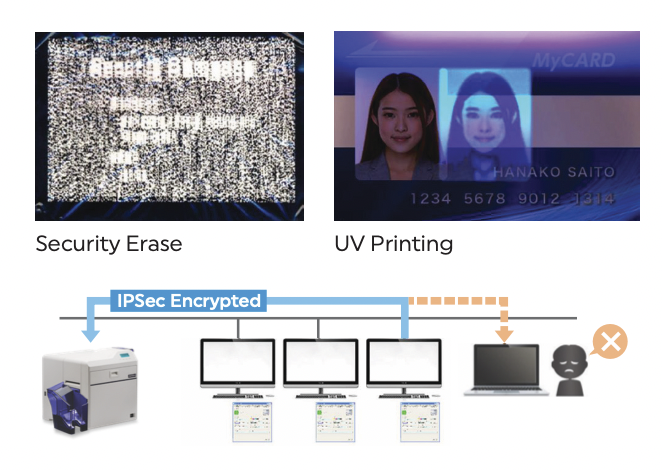

  • The Security Erase function (patented) prevents leakage of personal information on the ink ribbon. It scrambles information beyond recognition to protect this data.
  • For network security, the printer supports IPSec (IPv6 / IPv4). Encryption protects personal information on a network.

Durability

  • Dual InTM film protection INTM2
  • Patch/Overlay layer security

Specifications

  • Printing system: Dye sublimation retransfer
  • Printing resolution: 600dpi x 600dpi
  • Printable area: Edge to edge printing over the card surface
  • Print Speed (YMCK): 27.5 sec / single side | 55 sec / dual side (YMCK/K)
  • Card Thickness: 0.25mm ~ 1.00mm
  • Card Size: 54.0mm x 85.6mm
  • Card Hopper: 100 cards (250 cards hopper under development)
  • Interface: USB2.0 (Hi-speed / Full Speed) Ethernet (100BASE-TX / 10BASE-T)

Software environment (Driver and Tools):

Microsoft® Windows®10 32bit/64bit
Microsoft® Windows®8 (including 8.1) 32bit/64bit
Microsoft® Windows®7 (SP1) 32bit/64bit
Microsoft® Windows® Server 2012 64Bit
Microsoft® Windows® Server 2008 R2 (SP1) 64Bit

Operating environment conditions:

Temperature: 15°C to 30°C
Humidity: 35% to 70% (YMCK ink, No condensation)
Mass approx. 13.7kg
Dimensions 343mm x 335mm x 322mm (W*H*D) (without card stacker)

Consumables:

YMCK Ink Ribbon: 1000 images/roll
Re-Transfer Film: 1000 images/roll

Encoding Options:

Magnetic Encoder
Contact/contactless Encoder
